Thumbing Through Some SBSs

kind of self-explanatory, right? We seem to have some impressive thread-wrappers that lurk around this board. let's try to keep your "first booger" posts at a minimum.
User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Mon Jun 19, 2017 8:36 am

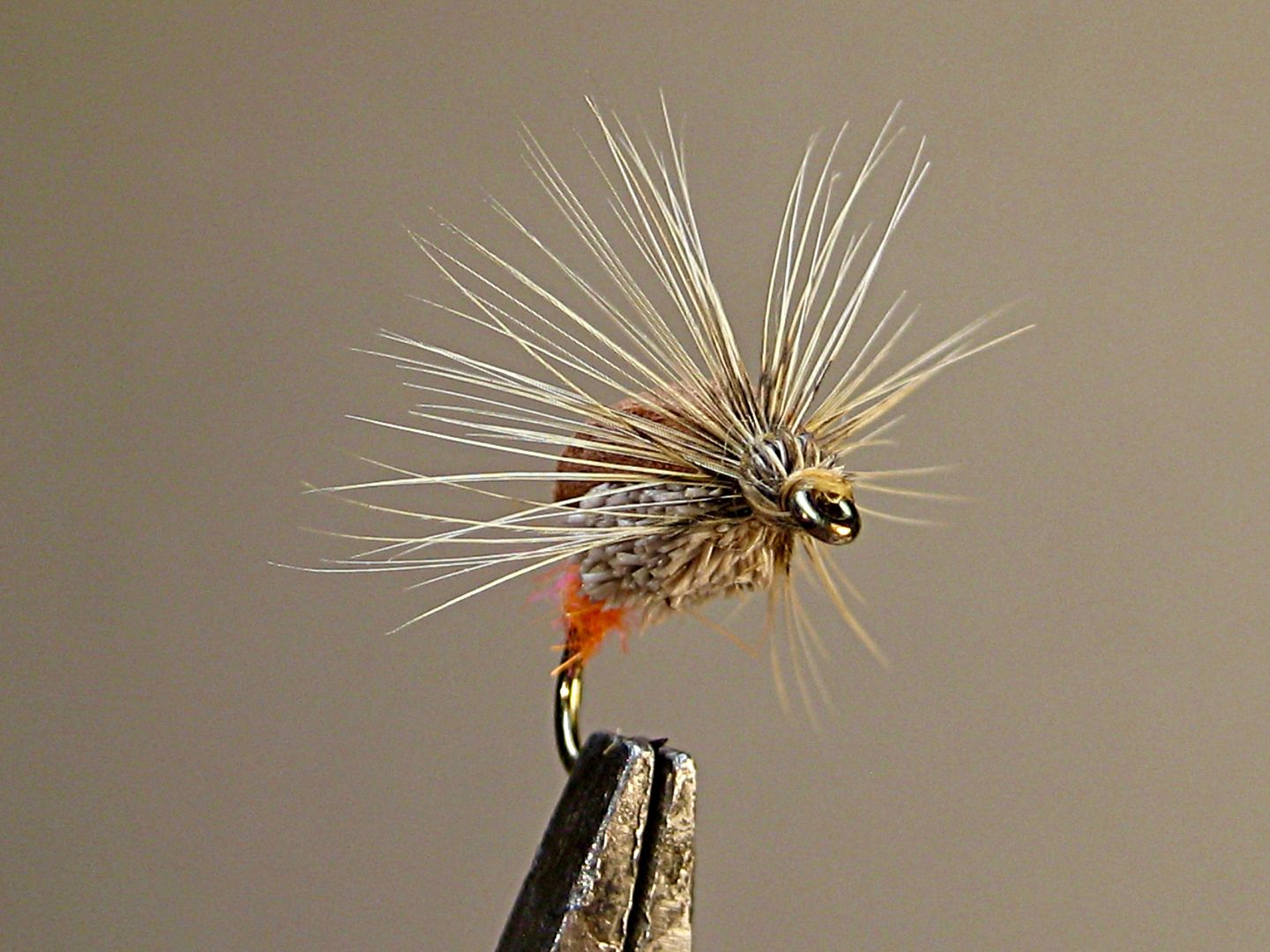

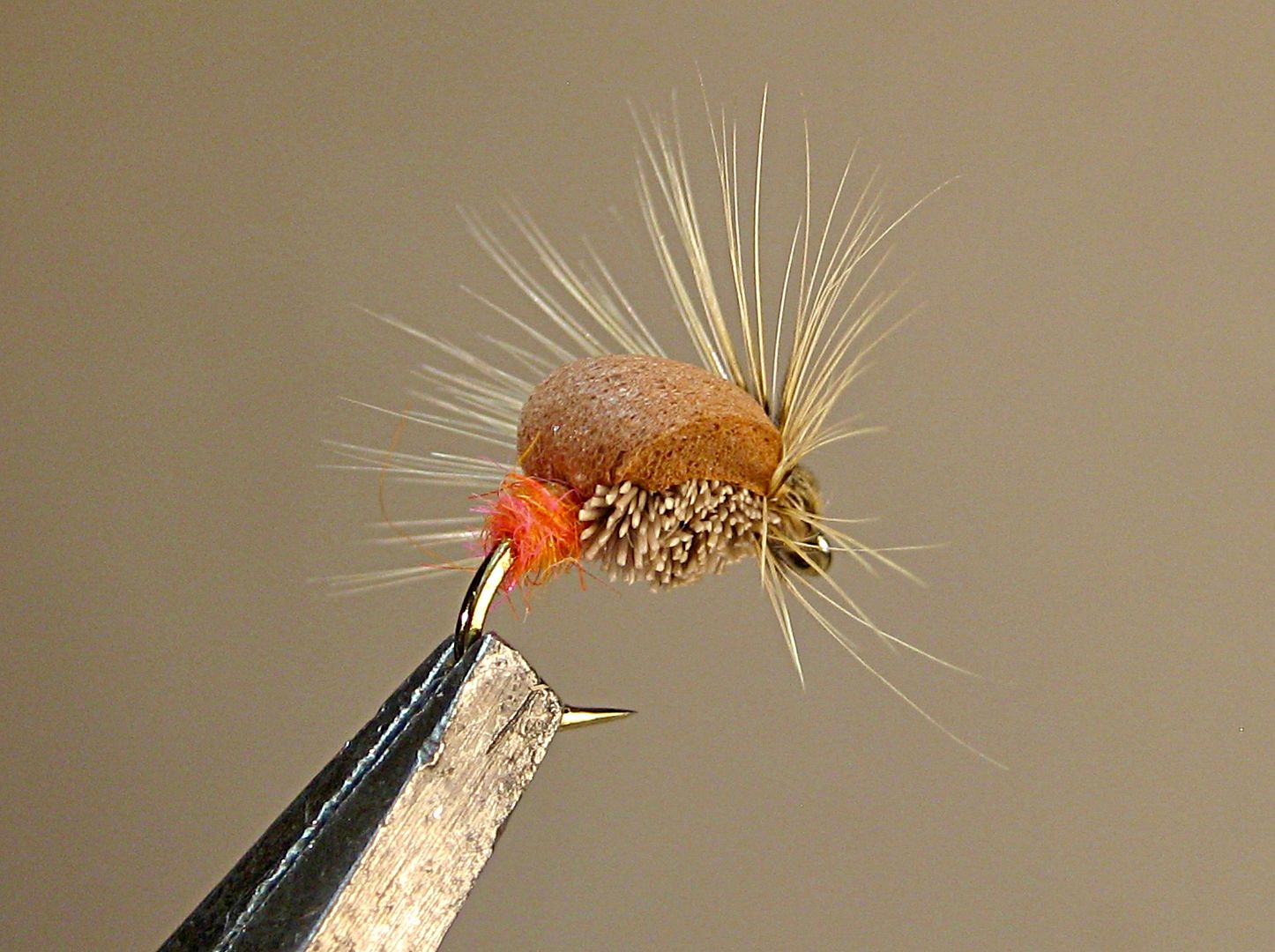

Pena Zhuk


More Russian goodness. Pretty basic construction with the exception of the hackle head/legs, which makes for a neat effect. Colors here based on what was in reach on my desk; change as you see fit.


hook – Dai Riki 135 #12
thread - MFC 8/0 light brown
hot spot - dubbing hot orange/pink
abdomen - deer hair
shellback - 2mm foam brown
legs/head - hackle ginger (oversize by 1)

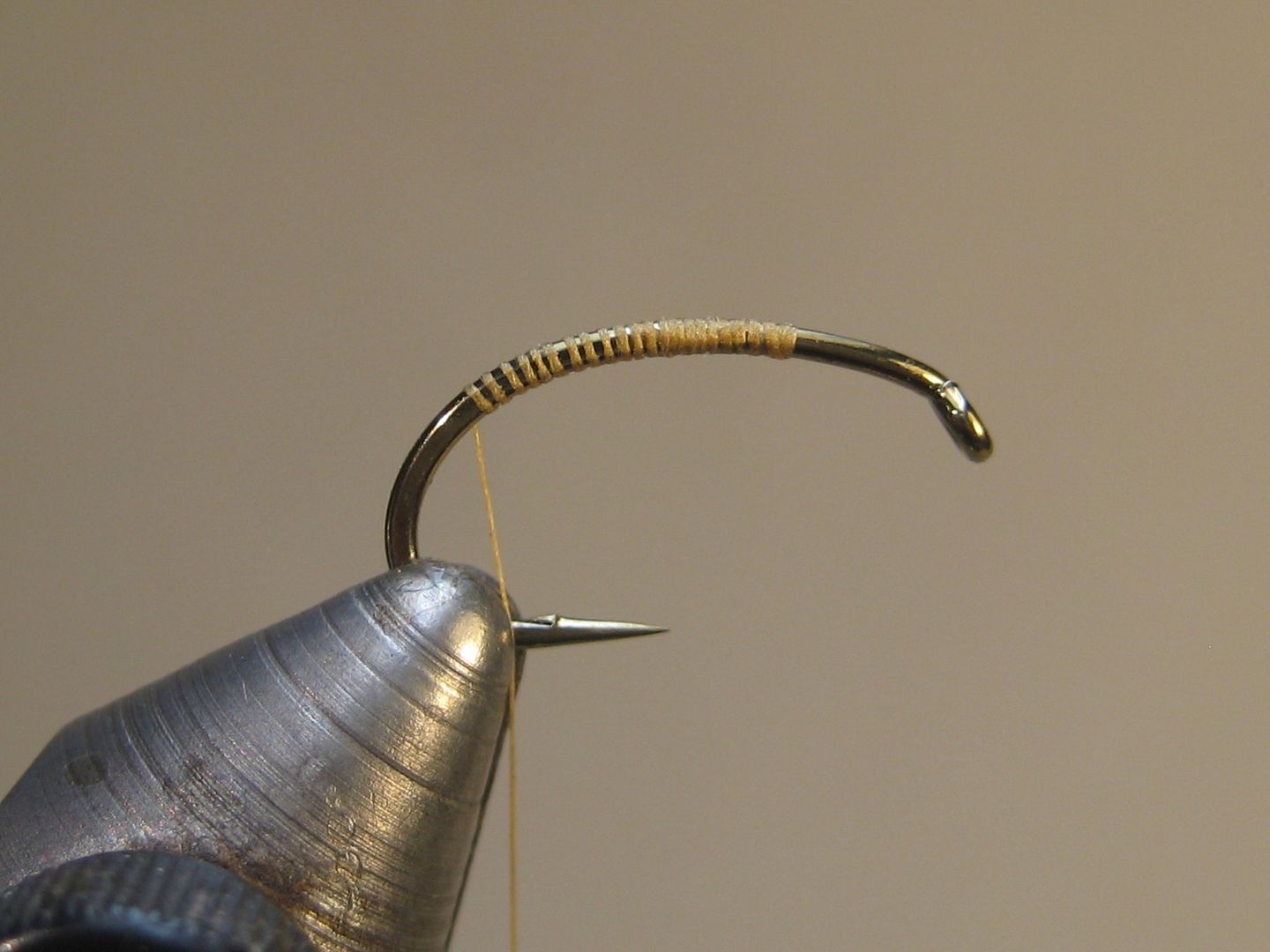

mash barb, start thread at 3/4 mark; wrap to bend

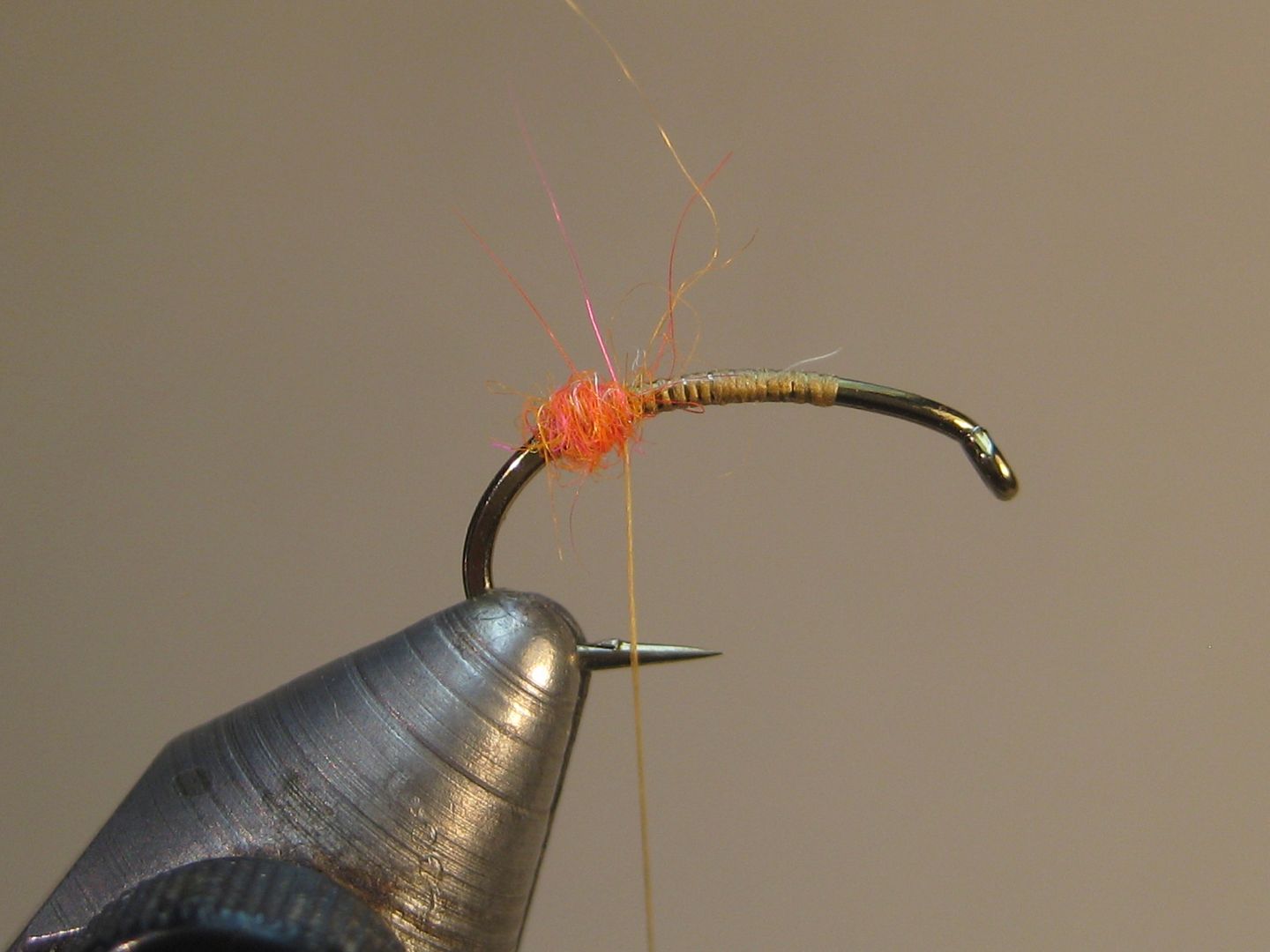

dub thread/dub hot spot

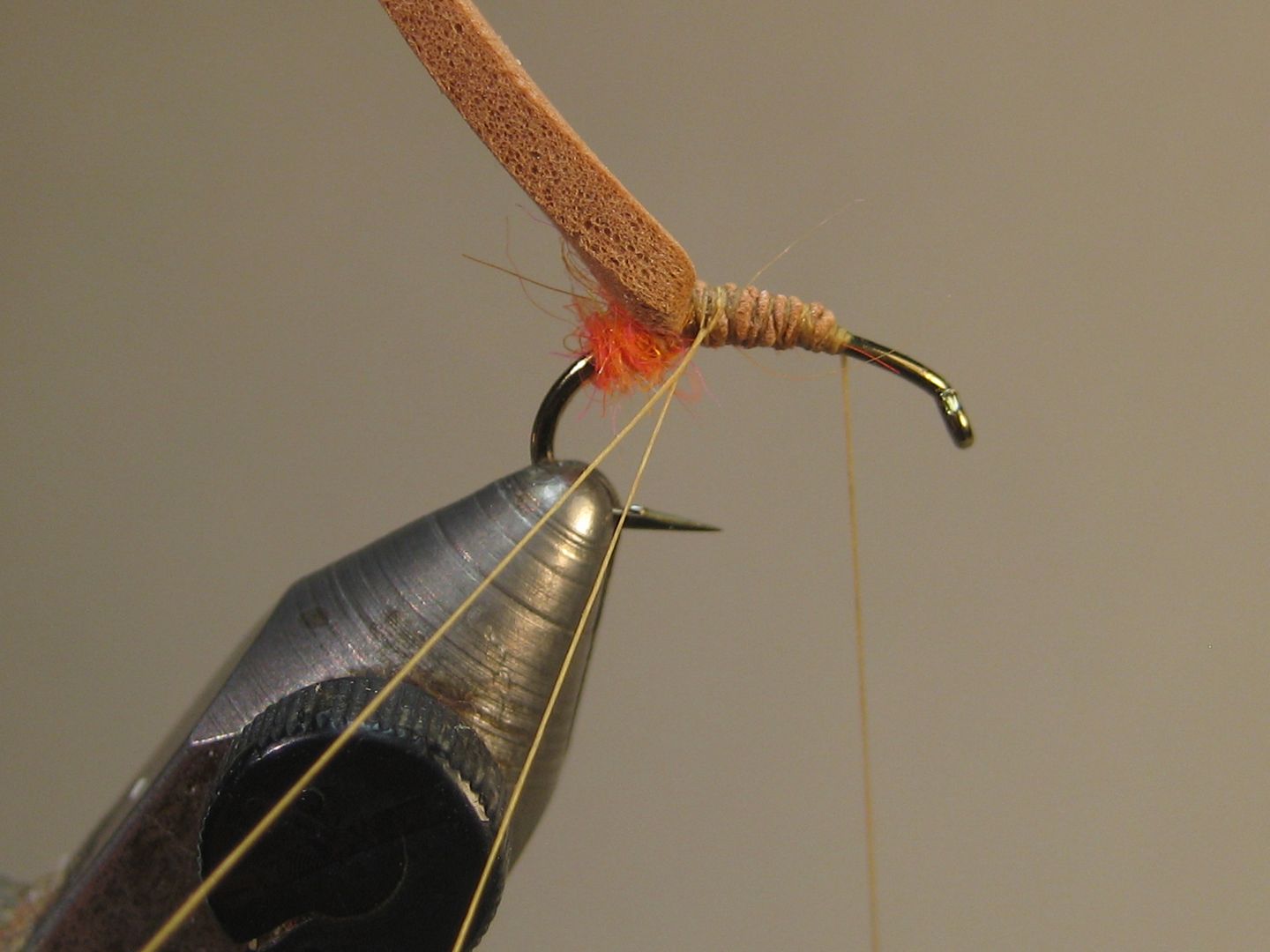

taper foam strip (gap width); brush shank with Super Glue and tie in




create dubbing loop; give it a dose of wax

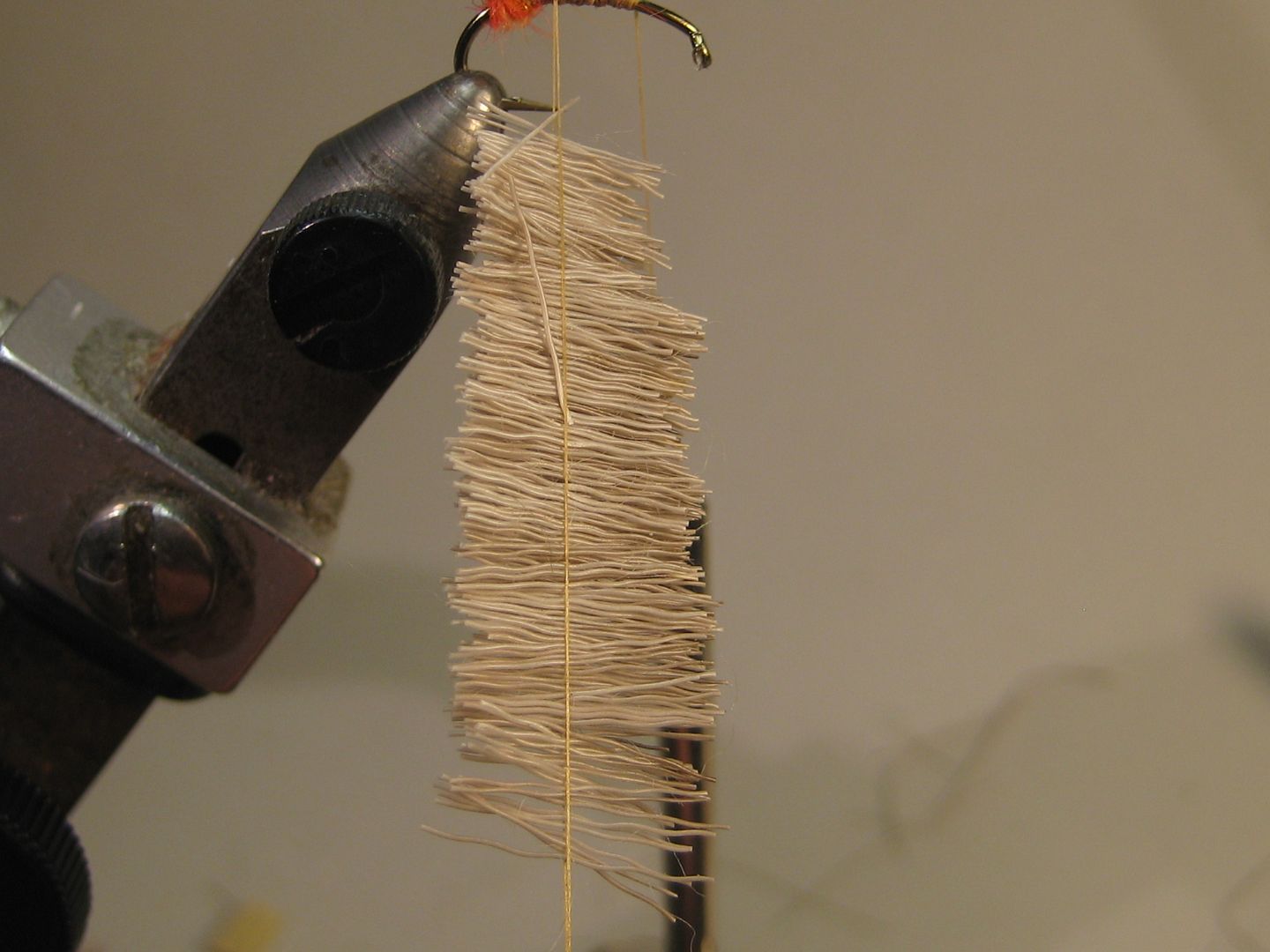

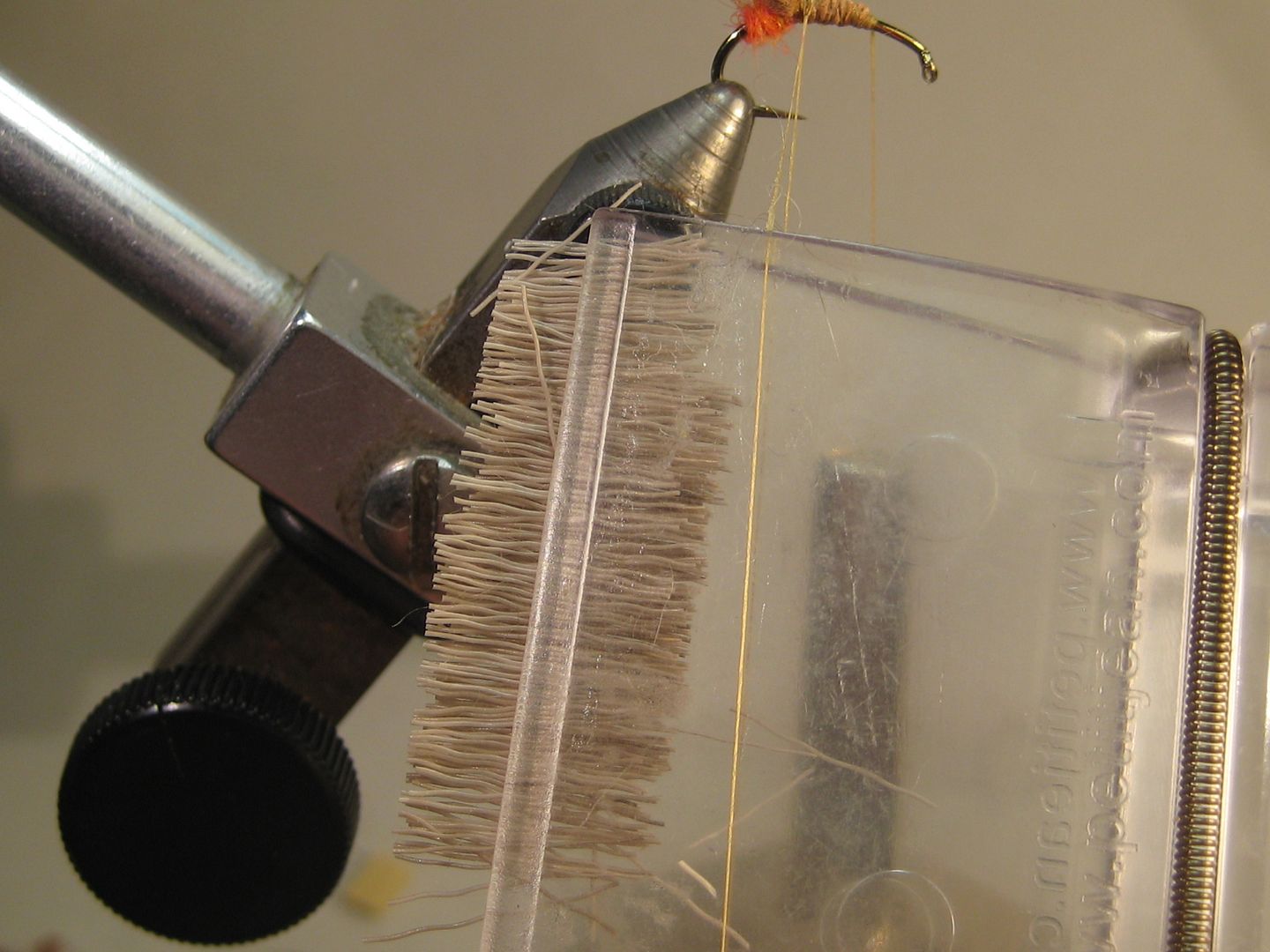

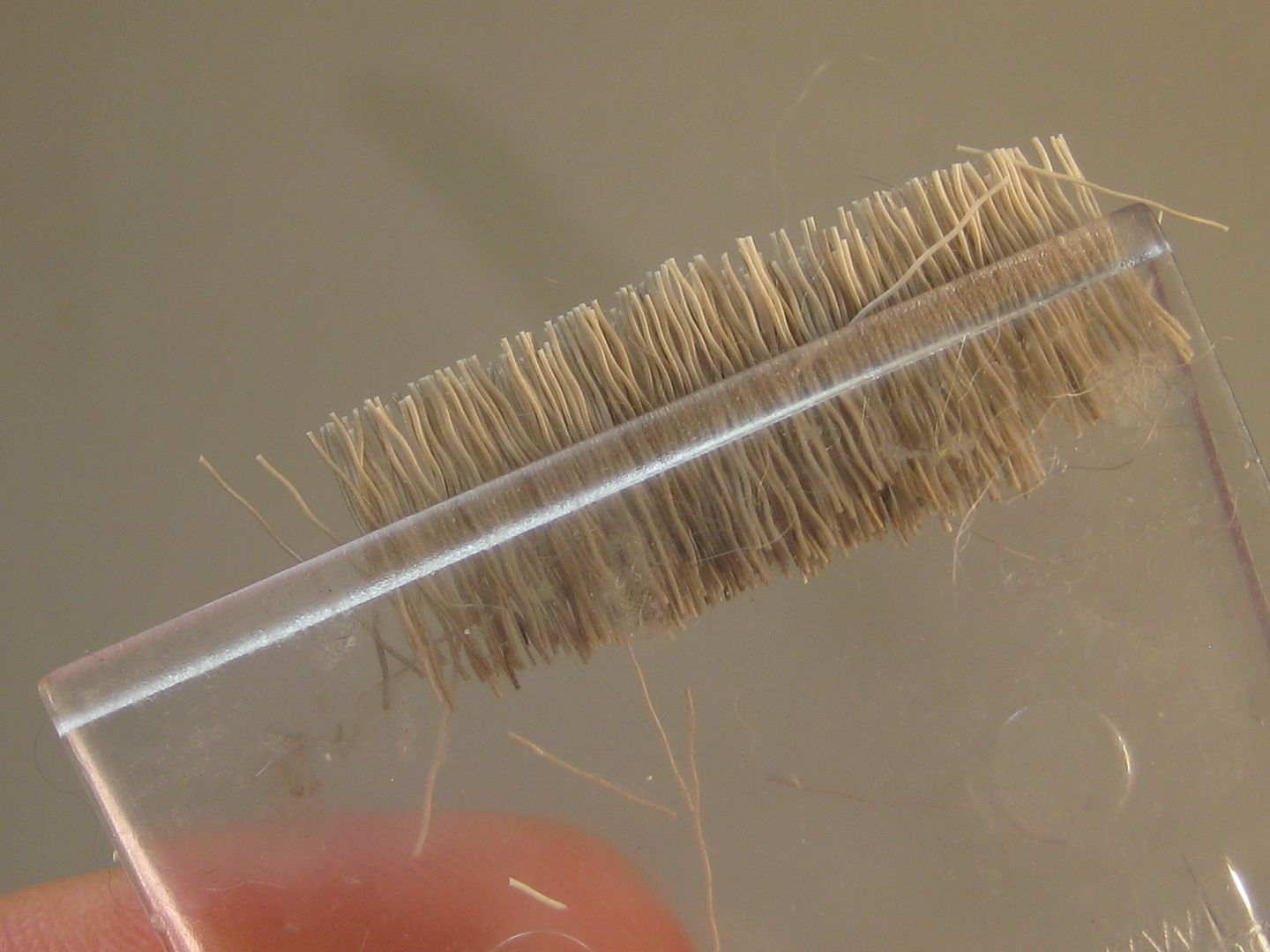

clean, trim tips from a clump of deer hair; insert in clip, transfer to loop, release from clip, spin

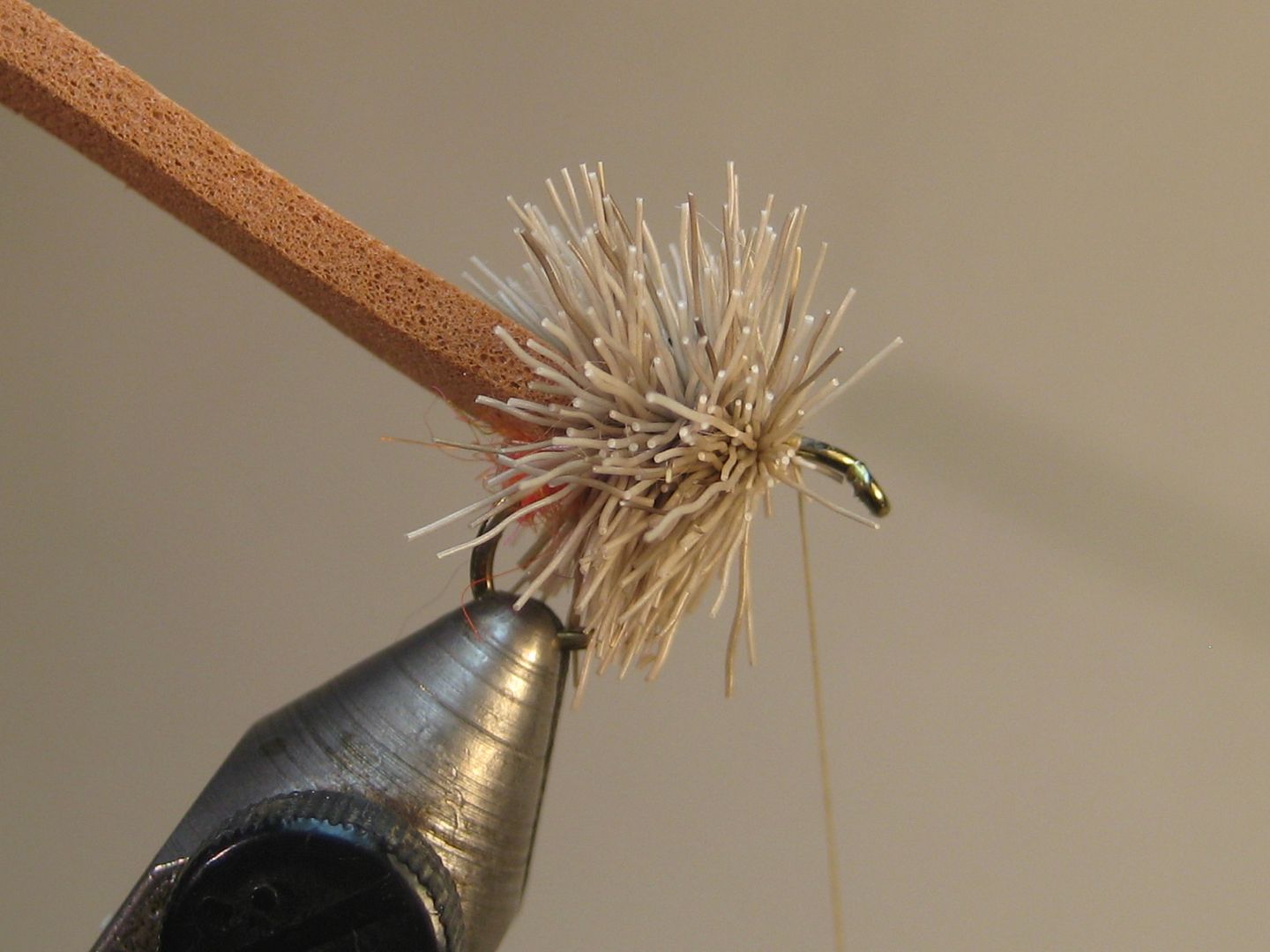

stroke hair back, wrap body to 3/4 mark, tie off/trim

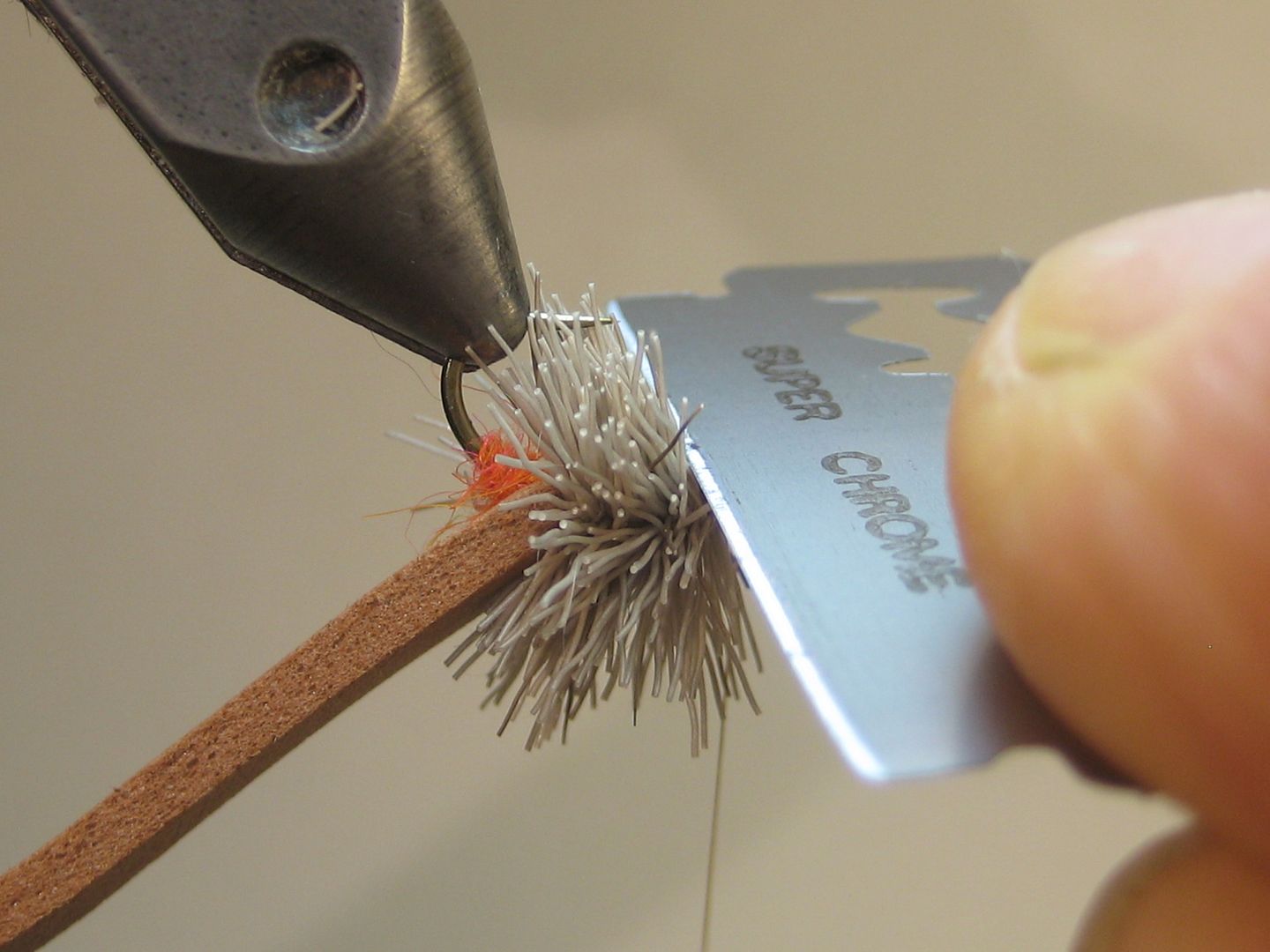

trim underside, laying blade on eye as a guide

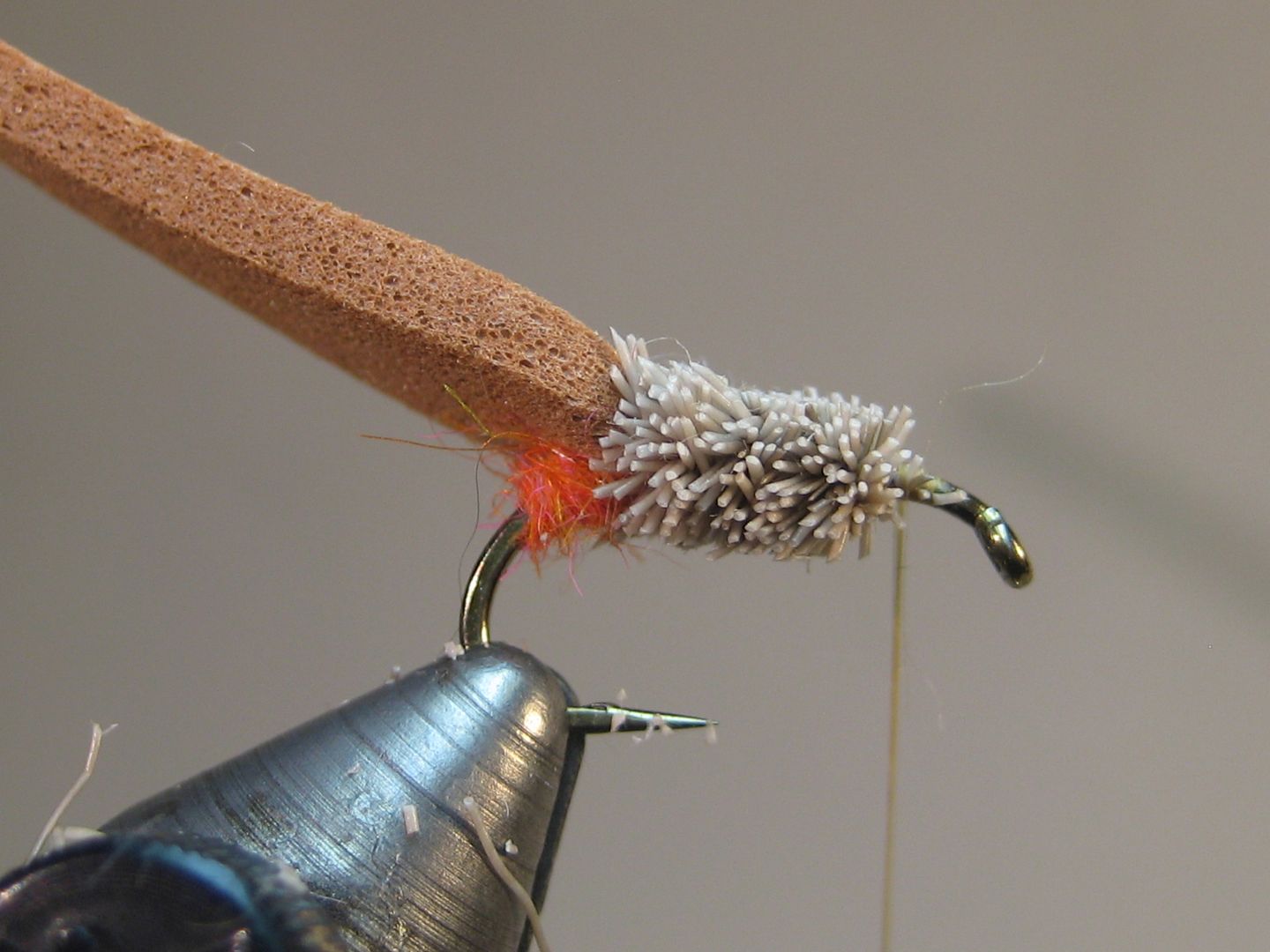

trim top; shape body

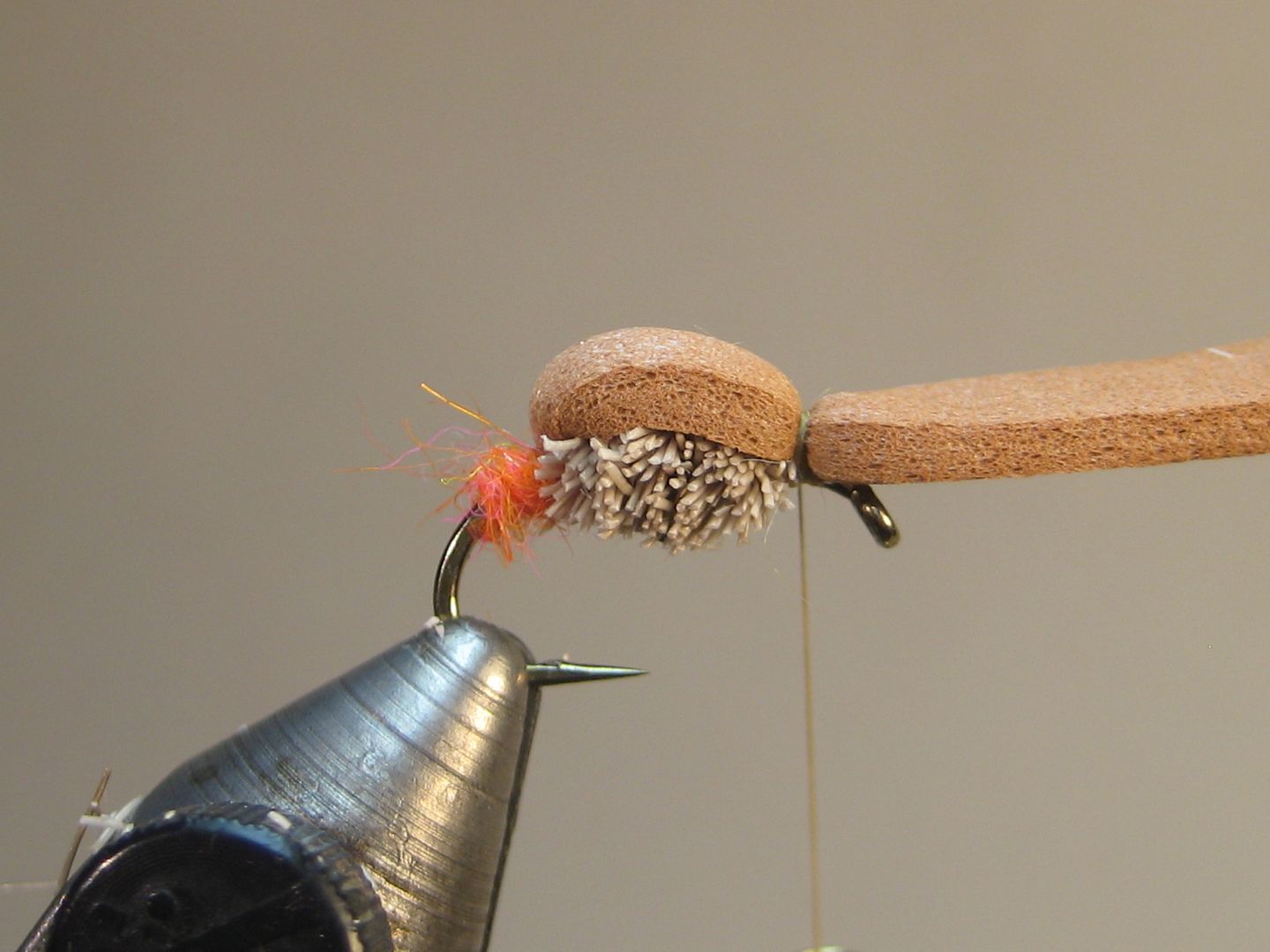

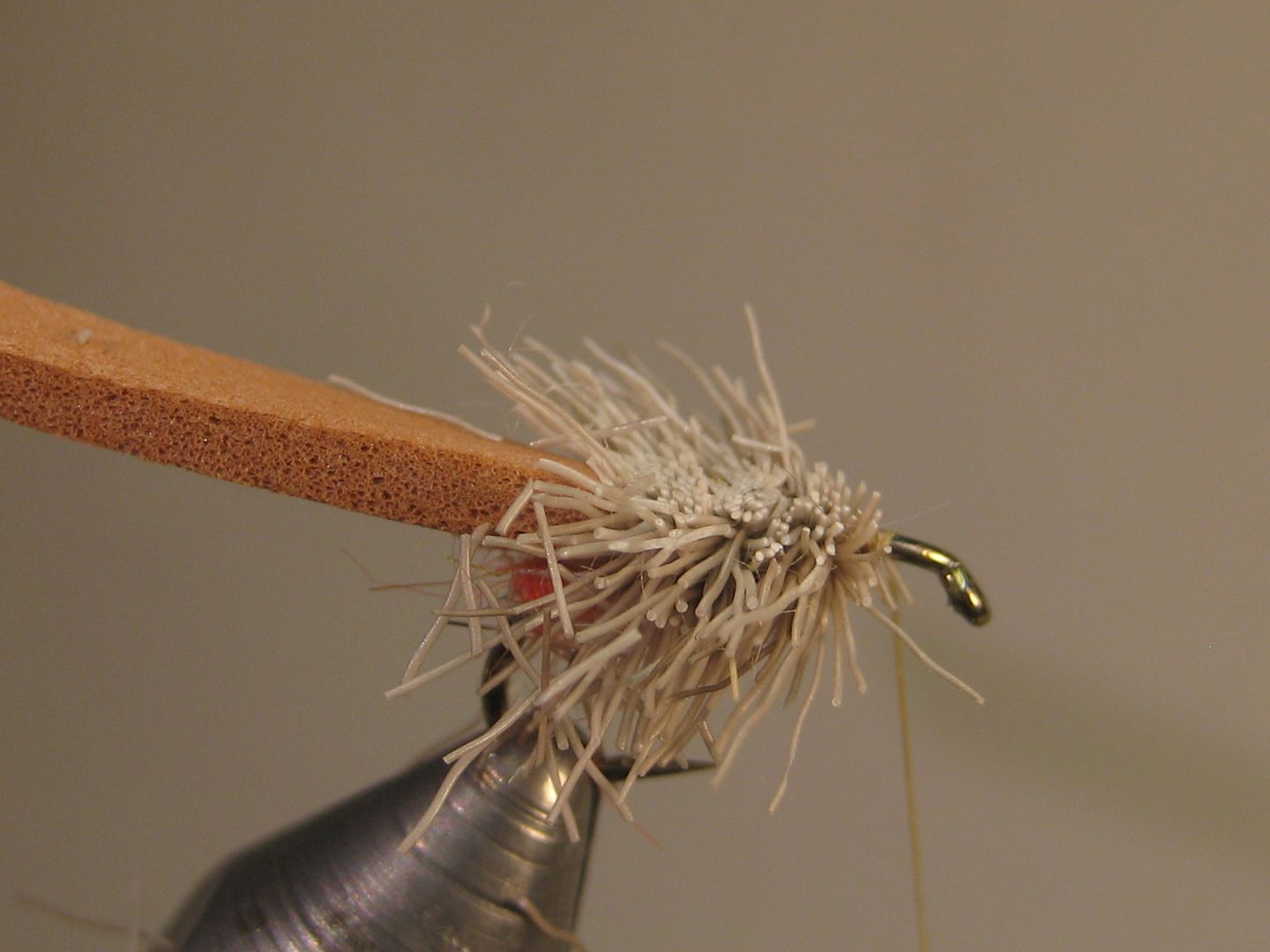

pull foam over body; tie off/trim

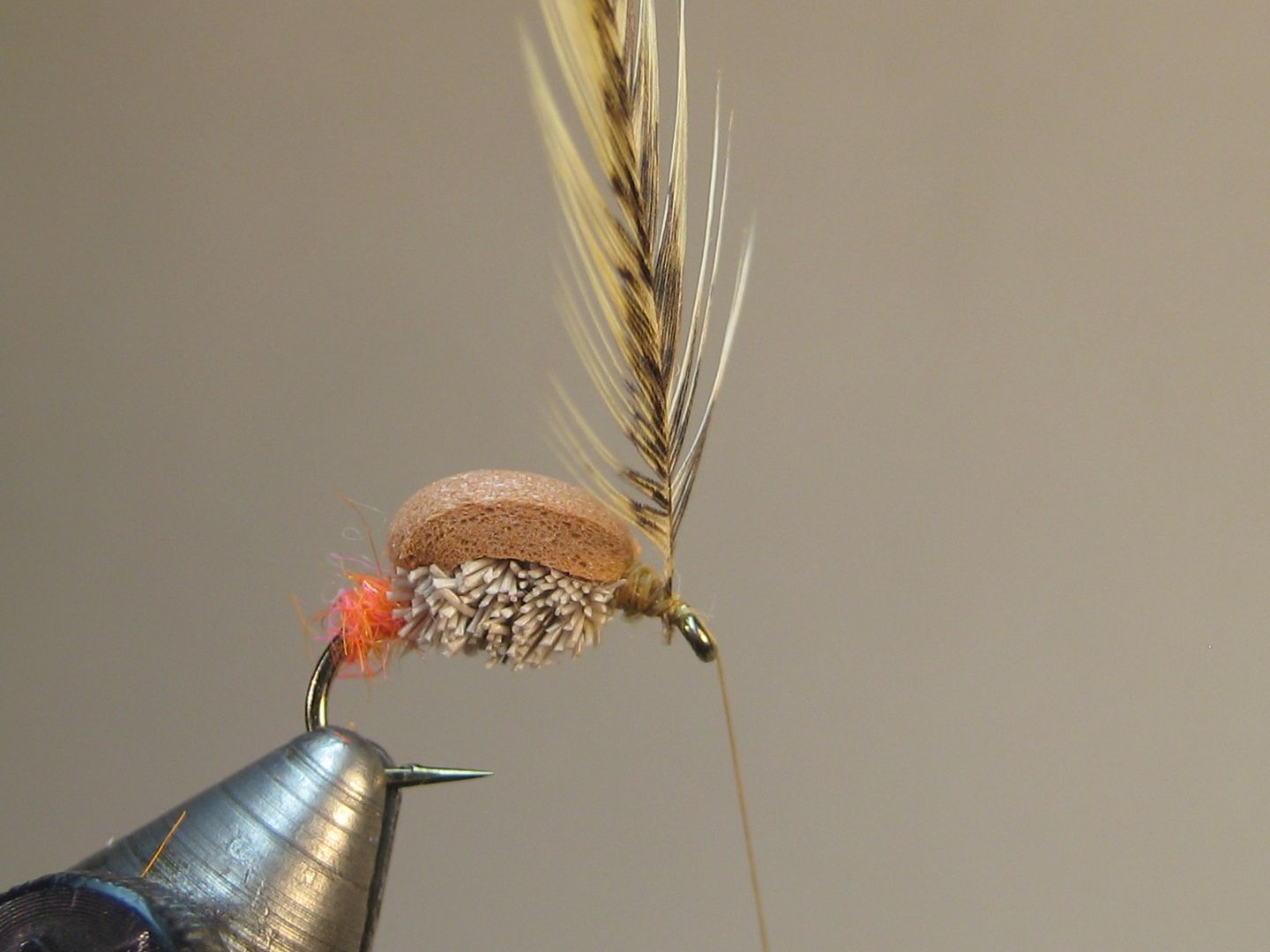

tie in hackle



wrap hackle; tie off/trim



wrap thread thru hackle back to front of the body; stroke hackle fibers back

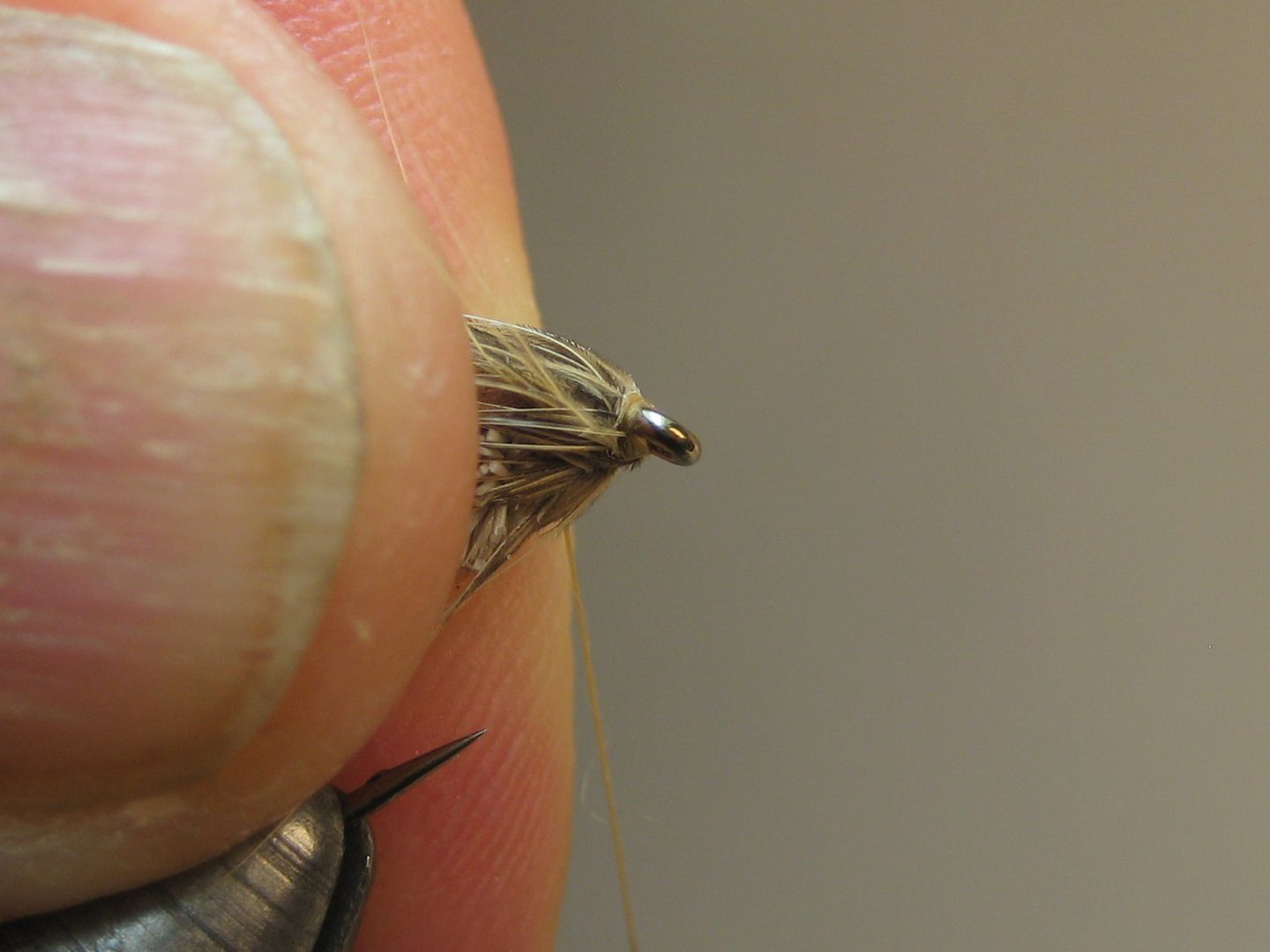

tie down hackle, creating head/legs



whip finish, SHHAN, stroke hackle fibers to the side/top



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Tue Jun 20, 2017 7:47 am

Siberian Stonefly Stimulator


Apparently Bob Quigley has a following in the steppes; cue the Borodin. Color choice is up to the tyer's imagination.


hook – Dai Riki 280 #10
thread - Danville 6/0 brown
abdomen - dubbing Scintilla smokey orange
wing - deer hair
hackle - brown
thorax - dubbing dirty yellow

mash barb (half-ass job here), start thread at 2/3 mark, wrap to point above point



dub thread/dub body to 2/3 mark




clean, stack, measure (hook point to eye) a clump of deer hair; tie in at eye, wrap back to abdomen






trim butts into tapered, wing-like shape



tie in hackle; take a few wraps, tie off/trim




dub thorax




tie in another hackle (or remainder of previous); wrap, tie off/trim




set front wing angle with thread wraps at eye; half hitch x 2, SHHAN




trim out hackle underneath



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
austrotard
Posts: 8793
Joined: Thu Dec 06, 2012 2:24 am
Location: the austrocity exhibition
Contact:

Re: Thumbing Through Some SBSs

Post by austrotard » Tue Jun 20, 2017 9:29 am

49% of americans assume I give a shit about what they think.

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Wed Jun 21, 2017 6:37 am

Para Ungu-Loop Dun


Another interesting Russian pattern. In the couple I've tied, I found softer hair worked better for the wing; if the loop starts coming apart, which it probably will, just trim the top and it'll become a standard ungulate hair parachute.


hook – Dai Riki 320 #12
thread - MFC 8/0 sand
tail - dun grizzly
abdomen - turkey biot callibaetis
wing - yearling elk
thorax - dubbing yellow/tan mix
hackle - dun grizzly


mash barb, start thread at 2/3 mark; wrap to point above barb and create a bump



even hackle fiber tips, measure (shank length); tie in, wrap against the bump to splay/set angle




tie in (moistened) biot, notch-side down for ribbed effect; wrap to 2/3 mark, tie off/trim




clean, stack, trim tips on a sparse clump of elk hair; tie in at 3/4 mark



fold over needle/bodkin/whatever, adjust height (shank length), tie down; trim butts, post wing






tie in hackle, shiny side out



dub thread/dub thorax; finish with thread at base of wing




wrap hackle down post; let hackle hang, half hitch x 2 at the base, SHHAN




trim hackle tip



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
pbrstreetgang
Posts: 2952
Joined: Wed Aug 29, 2012 6:57 pm
Location: Skonk Works

Re: Thumbing Through Some SBSs

Post by pbrstreetgang » Wed Jun 21, 2017 8:21 am

Here's how this story ends - if anyone else is reading:

http://www.charliesflyboxinc.com/flybox/index.cfm
veins full of disappearing ink

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Wed Jun 21, 2017 9:16 pm

Broughton Hopper



A pattern from Nevada tyer Robert Broughton. The unusual orientation of the feather is supposed to represent an injured hopper with it's wings laying out to the side.


hook – TMC 5212 #10
thread - Danville 6/0 yellow
tail/body - Congo Hair pale yellow
rib - Mirage Flash opal
wing - woodduck flank (any well-marked waterfowl would work)
hackle - grizzly/ginger

mash barb, start thread at 3/4 mark; tie in rib, wrap to bend



create a loop in a hank of CH; tie in, wrap tag end to 3/4 mark




wrap body to 3/4 mark; tie off/trim



counterwrap rib; tie off/trim



prep feather; invert fly, measure (tips to end of loop), tie in, trim






tie in hackle



wrap, tie off/trim, half hitch x 2, SHHAN




These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Thu Jun 22, 2017 9:39 am

Mumford's Irresistible Grasshopper


Found this in Trout Flies of the West. Original extended body was tied with deer hair spun on a core of non-tox which seems a bit counter-intuitive; switched to mono core and dubbing loop-spun deer instead.


hook – Dai Riki 280 #8
thread - UTC 140 yellow
core - 20lb mono
abdomen - deer hair dyed yellow
underwing - squirrel tail
wing - pheasant church window feather
head - deer hair dyed yellow
legs - medium rubber cornsnake


mash barb, start thread at 60% mark; put a loop in a piece of mono, brush with Super Glue, tie in, hook the loop in the gallows






wrap up the mono (gap width past bend); make a loop



clean, trim a clump of deer hair, insert in clip, trim ends



insert clip into loop, release, spin





wrap down the mono core, stroking fibers back



repeat loop sequence as necessary; finish up at 2/3 mark on the hook, tie off/trim





trim to shape; trim mono



move thread to eye; clean, stack, measure (shank length) a clump of deer hair; trim to length



2 soft loops around the butts, pull tight and let it spin




clean, stack, measure (tips to butt) a clump of squirrel tail; tie in/trim




coat pheasant feather with Sally, stroke to shape as it dries; tie in/trim




push deer hair back making sure it surrounds the hook



pull deer hair to the rear, capture with thread wraps; pull tight





add legs



trim out deer hair underneath



whip finish, SHHAN




These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
-G-
Posts: 334
Joined: Tue Nov 17, 2015 4:31 pm

Re: Thumbing Through Some SBSs

Post by -G- » Thu Jun 22, 2017 12:46 pm

Thanks Scotty-p but I'll stick to chubbies.

And if you tie a chubby with a dubbing loop of deer hair we're having words.
Maybe we haven't drank enough Busch- Nolan

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Fri Jun 23, 2017 6:22 am

Foam Hedgehog


A little foam for some more positive buoyancy. This would make a passable Traveling Sedge; add legs and it'd pass as a hopper.


hook – TMC 5212 #10
thread - UTC 140 tan
tail/head - 2mm foam tan
body - Zelon dubbing hydropsyche
wing - deer hair


mash barb, start thread, wrap to bend



taper foam strip (gap width)




measure (gap width past bend); tie in




brush shank with Super Glue; tie down foam to eye





dub thread/dub first section




clean, stack, measure (tips to tail) a clump of deer hair; trim to length/tie in




repeat for the next 2 sections; finish with dubbed head







fold foam over, tie down, add a little dubbing, finish with wraps in front of eye to set head angle; whip finish, SHHAN



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Mon Jun 26, 2017 4:59 pm

Nelson's Bridal Path Emerger


An interesting design from Brian Nelson. Original was tied with calf body hair wings; in this size that won't work for me. Not sold on this hackling method; may change things up a bit. Tied here as a PMD; change color/size to suit your needs.


hook – Dai Riki 125 #16
thread - Danville 6/0 pale yellow
tail - Congo Hair brown
rib - x-small wire copper
abdomen - pheasant tail
thorax - deer hair yellow
wing - Congo Hair pale yellow
hackle - ginger

mash barb, start thread; make a dubbing loop



clean a clump of deer hair; trim tips an insert in clip



insert in loop, spin




wrap thorax; trim, as needed



tie in a hank of CH behind thorax; divide, post, take a few wraps at the base to set angle forward




tie in shuck and wire; fold shuck, wrap to bend, trim shuck ( shank length)




tie in pheasant tail; wrap to thorax, tie off/ trim




counterwrap rib; helicopter end, cover with thread




tie in hackle at rear top of thorax



wrap hackle under shank at front of thorax



take a few more wraps of hackle, tie off/ trim, half hitch x 2, SHHAN



trim wing



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Mon Jul 03, 2017 6:56 pm

Bridal Veil MK II


First try; swapped the deer hair for foam and replaced the halo-effect hackle with a para loop. Not sure I like the wing position; may move it mid-thorax.


hook – Dai Riki 135 #16
thread - Danville 6/0 pale yellow
tail - Congo Hair brown
rib - x-small wire copper
abdomen - pheasant tail
thorax - 1mm foam yellow
wing - Congo Hair baitfish tan
hackle - ginger


mash barb, start thread at 2/3 mark, tie in CH and wire; fold and wrap back to bend




tie in PT, wrap to 2/3 mark, tie off/trim




counterwrap rib, tie off/trim; trim shuck




tie in loop and hackle




tie in foam strip



tie in wing



dub up the ramp to base of thorax



hook loop onto the gallows



wrap hackle up the loop ( thorax width)



and back to the base; tie off/trim



pull foam forward underneath; tie off/trim



stroke hackle fibers back, split the wing and pull hackle thru the gap; tie off/trim





half hitch x 2, SHHAN, trim wing



These things are gone forever
Over a long time ago, oh yeah
RIP Walter

User avatar
ScottP
Posts: 2249
Joined: Fri Mar 21, 2008 7:22 pm

Re: Thumbing Through Some SBSs

Post by ScottP » Wed Jul 05, 2017 11:13 am

Harken's Patient Angler Stone


A Deschutes pattern from John Harken, one-time owner of the Patient Angler in Bend, OR.


hook – TMC 5212 #6
thread - UTC 140 fluoro orange
tail - moose body hair
abdomen - Congo Hair orange
thorax - peacock herl
hackle - rusty dun
wing - elk hair


mash barb, start thread at 60% mark, wrap to bend



clean, stack, measure (gap width past bend) a clump of moose body; tie in, trim butts, cover with thread





tie in CH at 60 % mark; wrap to tail and back, tie off/trim




tie in hackle



tie in peacock, wrap to 80% mark; tie off/trim




wrap hackle thru thorax; tie off/ trim



clean, stack, measure ( tips to tail) a clump of elk hair; tie in, taking a few raps thru the butts to anchor




build up head, whip finish, SHHAN, trim butts



These things are gone forever
Over a long time ago, oh yeah
RIP Walter
